PRODUCTS

Lubrication Systems

With over 30 years of experience in lubrication system design, installation, and training, we provide the highest quality parts, systems and support for all your systems’ lubrication needs.

Request a Quote
IMG_6214
Proximity-Switch
MNI-DIRT-TRAP-FILTER-ABOVE-VIEW-10MIC-WHITE-BACKGROUND

Engineered to Perform at the Highest Standards

R-F Divider Blocks & Accessories

  • High Pressure, Series Progressive Divider Valves – 7500 psi

  • Divider black come in standard in plated carbon steel with upgrade to 303 or 316 stainless steel

  • Can accommodate 1-22 lube points per valve assembly

  • Both standard “Trabon” and optional “Lincoln” mounting footprints available

  • Accessories for monitoring, alarming, and troubleshooting (Performance/reset indicator pins, check valves, visual cycle indicators, and prox switch (316 only) available in 303 or 316 stainless steel

  • Outlet threads available: 1/8-27 NPSF, 1/8-27 SAE (O-Ring), 1/8-28 BSPP, M10x1.0 ISO, 7/16-20 SAE

  • All thread caps and mounting blots are stainless steel

  • Outlet check valves, terminal check valves, and check valve adapters available in 303 or 316 stainless steel

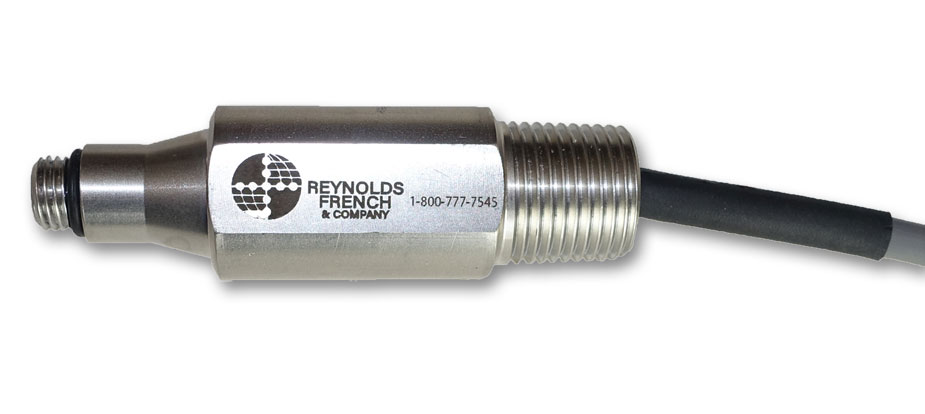

Prox Switches

  • Proximity Switches are field sensitive, dry contact, with ceramic magnets

  • 316 STAINLESS STEEL

  • They have a max cycle rate of 200 cycles per minute. A max pressure rating of 7,500 psi

  • Electrical rating:
    PROXIMITY SWITCH, EXPLOSION PROOF, 1 /2″ NPT WITH LEADS
    CLASS I, GROUPS A,B,C,D
    CLASS II, GROUPS E,F,G
    CLASS Ill
    4 Amps@ 120V AC, 2 Amps @ 240V DC, 3 Amps @ 24V DC, .5 Amps@ 125V DC
    MAX VIBRATION RATING: 7g, 10-55hz

  • Cycle Life: 150,000,000 Cycles

Box Lubricator and Pump

  • Suction and gravity/pressure feed models for application flexibility
  • 3/16″, 1/4″, and 3/8″ piston sizes available
  • Superior roller bearing. Exclusive ball bearing roller design has superior rotation to help protect cam lobe from damage
  • Larger diameter roller spreads load pressure evenly
  • Stainless Steel Piston and Spring are corrosion resistant
  • Innovative double ball outlet check
  • Patent-pending Ball-in-Socket design spreads force evenly over piston tip to avoid bending and wear for longer piston and rocker life

MVB/LVB Pump Used With Block Feeder Systems

  • The MVB Lubrication systems were developed to handle the higher operating pressures, up to 8000 psi
    • Automatic proportioning of lubricant through positive displacement valves
    • Monitoring via the proximity switch and visual cycle indicator allows for quick indication of problem areas and provide alarming and shutdown
  • Three pump piston sizes available – 3/16″, 1/4″ and 3/8″
  • 10 gearbox ratios available
  • 3 gearbox drive cam options available
  • Gearbox can accommodate one or two pumps

High Pressure Filters

  • Replaceable filer assembly
  • Simple and compact in design
  • Easy to install on any new or existing system
  • Filter assembly can be changed without disturbing piping or tubing
  • Filter is permanently mounted to end plug, ensuring system operation only with filter element installed in line
  • Integral air-bleed port for installation and maintenance convenience
  • Non-bypass design
